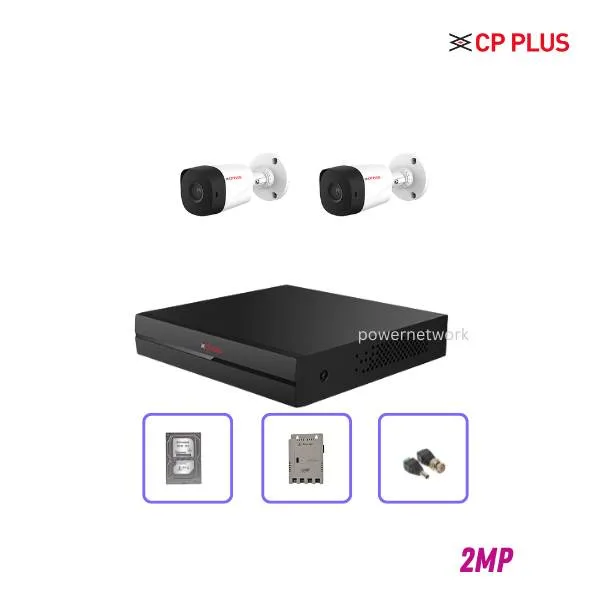

CAMERA DETAILS
- Image Sensor 1/2.7″ 2.4MP PS CMOS Image Sensor (6.858 centimeters)
- Minimum Illumination 02Lux/F1.85, 30IRE, 0Lux IR on
- Effective Pixels 4MP
- BodyType Bullet
- Shutter Speed PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s
- White Balance Auto / Manual
- Lens 6mm (2.8mm, 6mm Optional)
- Gain Control (AGC) Auto / Manual
- Angle of View H: 87.5° (103°, 54.7°)
- Back Light Comp. BLC / HLC / DWDR
- Video Streaming 25/30fps@2.4MP, 25/30/50/60fps@720P
- OSD Multi-language
- Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
- IR Range IR Range of 20 Mtr.
- Operating Temperature -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
- Power Source 12V DC ±30%
- Power Consumption Max 3.3W (12V DC, IR on)
- Weatherproof Standard IP67
- Dimension 3mm×69.8mm×69.8mm (6.07
- DOWNLOAD DATASHEET
DVR DETAILS
- IP Camera Input 4+2 channels, each channel up to 6MP
- Two-way Talk Reuse audio in/out, RCA
- Video Output 1 HDMI, 1 VGA
- Video Resolution 1920×1080, 1280×1024, 1280×720
- Video Compression AI Coding/H.265+/H.265/H.264+/H.264
- Video Recording Main stream: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/ D1/CIF (1 fps–25/30 fps) Sub stream: D1/CIF (1 fps–15 fps)
- Video Display Split ¼ /
- Resolution 5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF
- Bit Rate 32 kbps–6144 kbps per channel
- Video Channel 4 channel, BNC
- Audio Compression 711A, G.711U, PCM
- Audio Input 1 channel, RCA
- Audio Output 1 channel, RCA
- Motion Detection MD Zones: 396 (22 × 18)
- Video Loss Supports
- Smart Phone iPhone, iPad, Android Phone
- Hard Disk 1 SATA port, up to 6TB
- Camera Blank Support
- Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Recording Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
- Backup Mode USB Device/Network
- Max User Account 128 users
- Power Consumption <4W (without HDD)
- Dimension 198 mm × 203.0 mm × 41.5 mm
- DOWNLOAD DATASHEET
