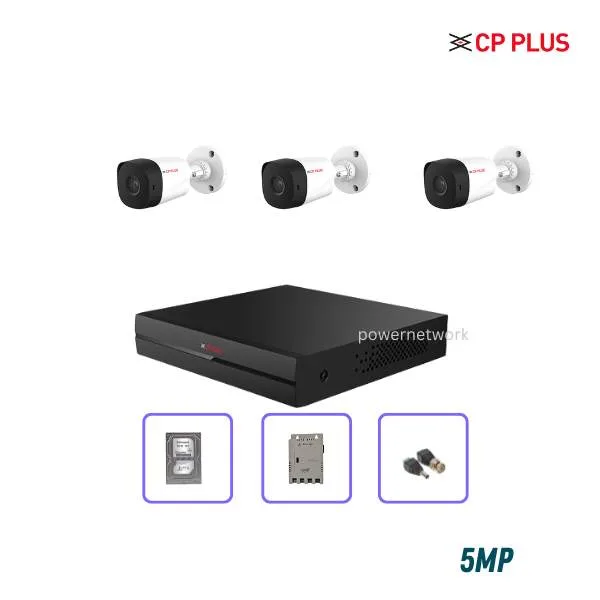

CAMERA DETAILS
- Image Sensor 1/2.7” 5MP CMOS Image Sensor (0.9407cm)
- Minimum Illumination 0.02 Lux/F2.0, 30IRE, 0 Lux IR on
- Shutter Speed PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
- White Balance Auto / Manual
- Gain Control (AGC) Auto / Manual
- Max. Aperture F2.0
- Lens 3.6mm (2.8mm optional)
- Max Aperture F2.0
- Iris Fixed
- Lens Type Fixed lens/ Fixed Iris
- Close Focus Distance 2.8 mm: 0.8 m ; 3.6 mm: 1.2 m
- Privacy Mask Off / On (8 area, rectangle)
- Audio Built-in Mic
- Back Light Compensation BLC / HLC / DWDR
- Video Streaming CVI: PAL: 5MP@25fps; 4MP@25fps; 1080P@25fps; NTSC: 5MP@25fps; 4MP@30fps; 1080P@30fps; AHD: PAL: 4MP@25fps; NTSC: 4MP@30fps; TVI: PAL: 4MP@25fps; NTSC: 4MP@30fps; CVBS: 960H
- Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Angle of View 3.6 mm: 104° × 88° × 46° (D × H × V); 2.8 mm: 125° × 106° × 56° (D × H × V)
- IR IR Range of 20 Mtr., Smart IR
- Casing Plastic
- Power Source 12V DC ±30%
- Power Consumption Max 3.7W (12V DC, IR on)
- Weatherproof Standard IP67
DVR DETAILS
- IP Camera Input 4+4 Ch.(analog channels are converted into IP channels) each channel up to 8MP. Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
- Two-way Talk Yes (share the same audio input with the first channel)
- User Interface GUI
- Video Output 1 HDMI, 1 VGA
- Video Resolution VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
- Resolution 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
- Video Compression AI Instastream, Instastream, H.265; H.264+; H.264
- Video Display Split 1/4
- Video Channel 4 channels
- Audio Compression G.711A, G.711U, PCM
- Audio Output 1 channel RCA, 4-channel BNC (Coaxial Audio)
- Audio Input 1 channel, RCA
- Motion Detection MD Zones: 396 (22 × 18)
- Video Loss Supports
- Smart Phone iPhone, iPad, Android Phone
- Face Gender; age group; glasses; expressions; face mask; beard
- Hard Disk 1 SATA port, up to 16TB.(The maximum HDD capacity varies with environment temperature.)
- Database Management Up to 10 face databases and 20,000 images.
- Bit Rate 32 kbps–6144 kbps
- Recording Mode General, motion detection; intelligent; alarm; POS
- Backup Mode USB Device/Network
- Playback Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
- Ethernet 1 RJ-45 port (10/100Mbps)
- Interface Ports 1 HDMI, 1 VGA, 2 USB Ports(2.0), 1 RS485
- Power Supply DC 12V/2A
- Power Consumption <7W (without HDD)
- Dimension 260mm x 237.9mm x 47.6mm(W × D × H)
- Weight 0.53kg
